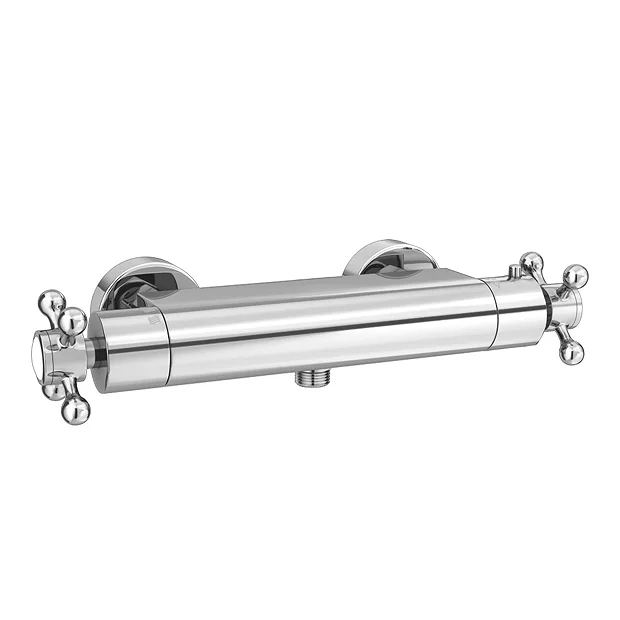

Chatsworth Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve

Chatsworth Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve – Chrome

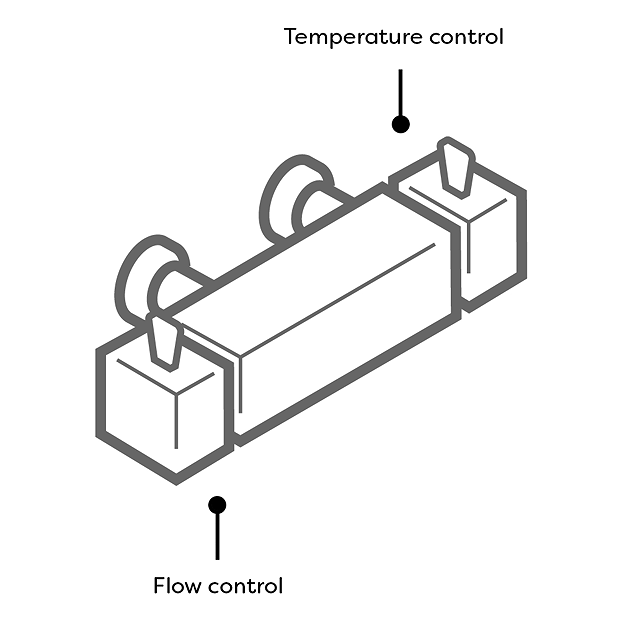

The Chatsworth exposed thermostatic bar valve with bottom outlet is part of our traditional collection of bathroom products. Classic styling with a chrome finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls with classic white indices, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle. Designed to be used with a slider rail kit (not included).

Product Details

• Width: 304mm
• Depth: 100mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Style: Traditional
• Type: Bar Shower Valve
• Handles: Cross-head
• Ceramic White Indices
• Surface / Wall Mounted
• Bottom Outlet
• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device
• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

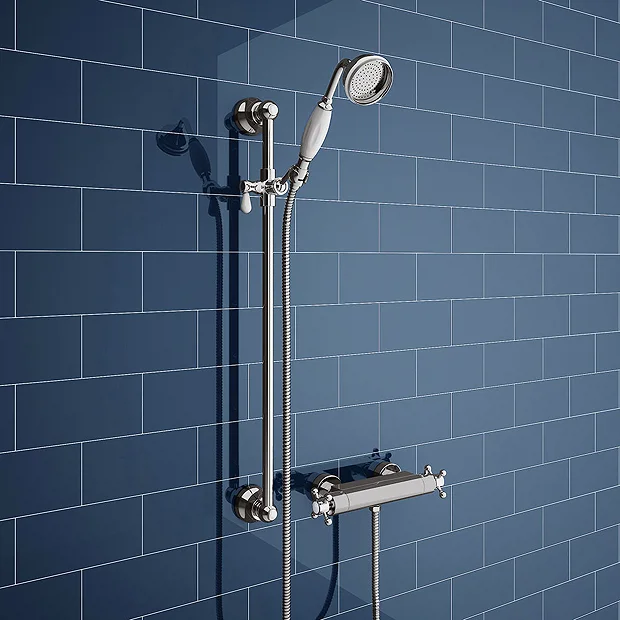

Product images for illustration purposes only, does not include shower kit.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
