Grohe Solido Bau Ceramic Rimless 5-in-1 Pack

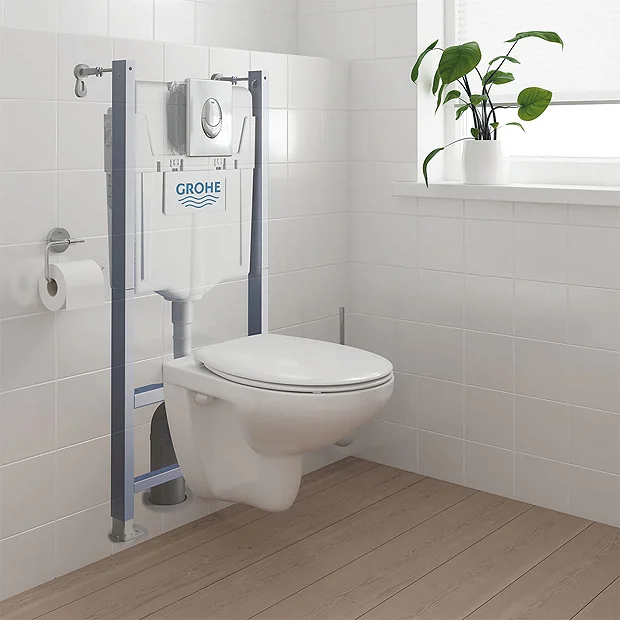

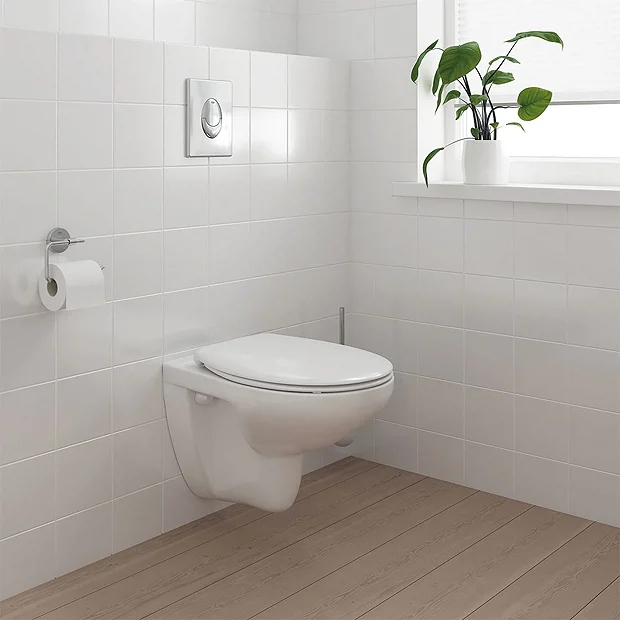

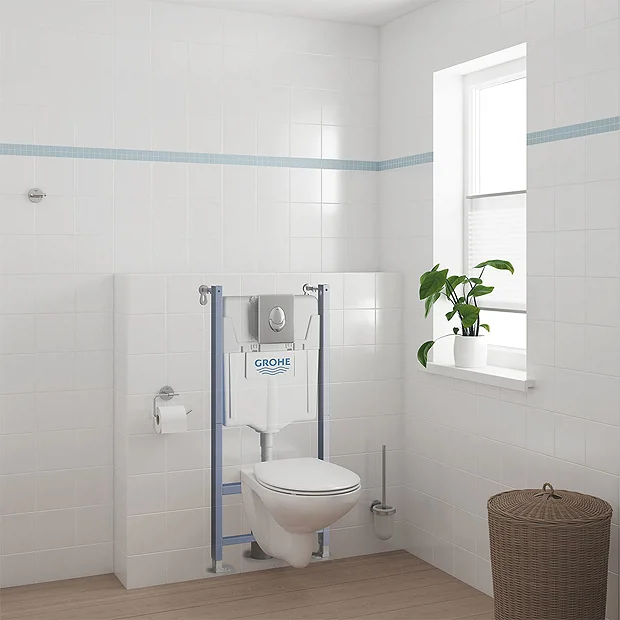

Grohe Solido Bau Ceramic Rimless Wall Hung Toilet with Skate Air Flush Plate, Concealed Cistern + Frame (5 in 1 Bundle)

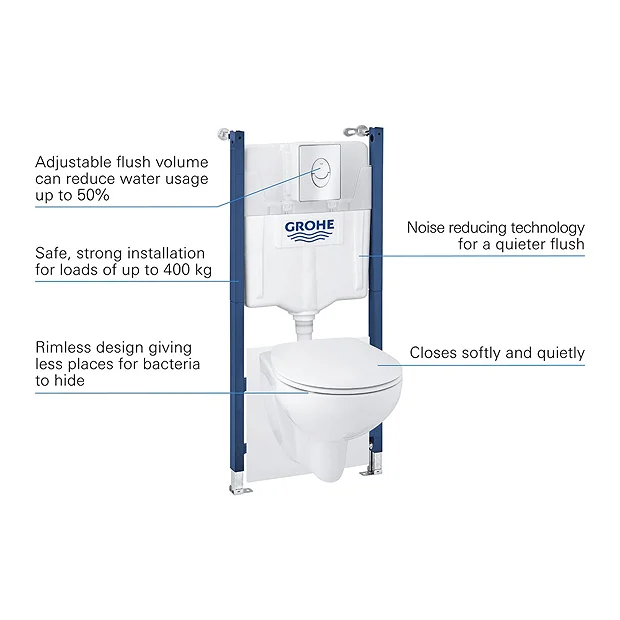

The Grohe Solido Bau Ceramic Rimless 5-in-1 Pack offers a complete solution for a wall mounted toilet and leaves nothing to be desired. It comes complete with the GROHE Bau wall-hung WC with seat, the chic Skate Air flush plate in gleaming GROHE StarLight chrome finish, wall brackets and noise protection set for extra sound insulation. The WC’s rimless technology gives germs nowhere to hide, making cleaning easy. GROHE Whisper noise control reduces sound transmission caused by flushing to adjoining rooms. The GROHE EcoJoy flush technology reduces your water consumption by up to 50%: The dual flush system allows you to select a flush volume of either 3 or 6 litres and it’s possible to stop a full flush with the small button.

Pan Details

• Height: 410mm
• Width: 368mm
• Projection: 531mm
• Brand: Grohe
• Range: Bau Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: White
• Easy-clean rimless technology
• Supplied with WC seat with quick release action and Soft Close feature

Frame Details

• Height: 1135mm
• Width: 500mm
• Brand: Grohe
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet
• cistern GD 2, 6-9l
• factory setting 6l and 3l
• pneumatic drain valve with two functions:
• Set or start & stop
• water connection from left / right / rear or top Faucet group

Flush Plate Details

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: Skate Air
• Type: WC Wall Flush Plate
• GROHE StarLight chrome finish
• GROHE EcoJoy technology for less water and perfect flow
• Material: ABS
• For dual flush or start & stop actuation
• For vertical installation
• For pneumatic drop valve AV1

5 Year Guarantee

Picture for illustrative purposes only

All measurements are approximate

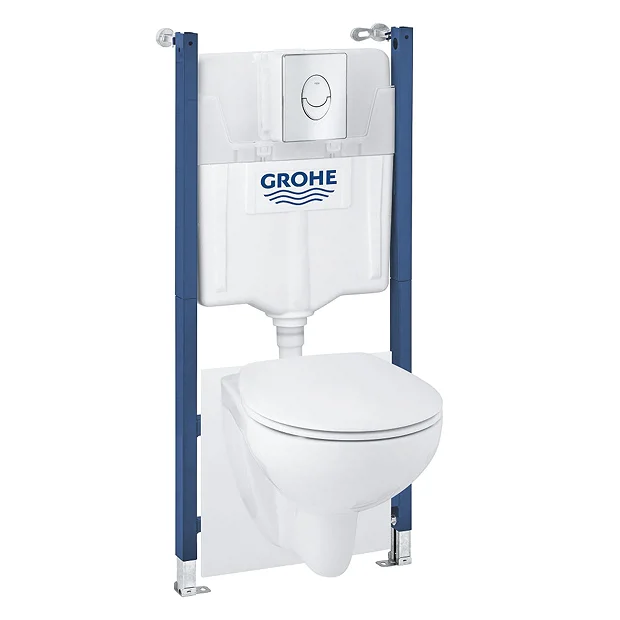

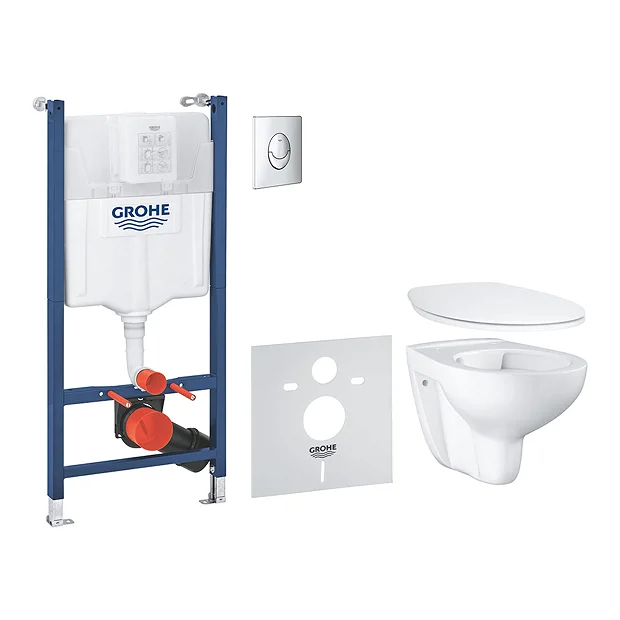

Comprises

Bau Ceramic Rimless Wall Hung Pan
Bau Ceramic Soft Close Seat
Skate Air Flush Plate Chrome (vertical installation)
Solido Frame 1.13m / 3/6L Cistern
Sound Insulation Set
