Trafalgar Traditional Triple Concealed Thermostatic Shower Valve With Diverter

Trafalgar Traditional Triple Concealed Thermostatic Shower Valve with Diverter

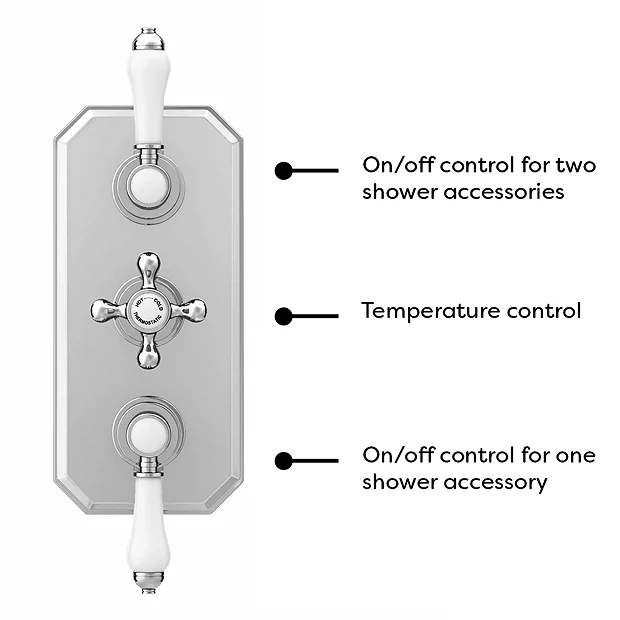

The Trafalgar triple concealed thermostatic shower valve with built-in diverter brings substantial elegance to the modern bathroom. This concealed triple shower valve offers thermostatic showering via three easy-to-operate controls.

Operates two outlets separately or simultaneously and diverts to a third option e.g. fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

Product Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Built-in Diverter
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.

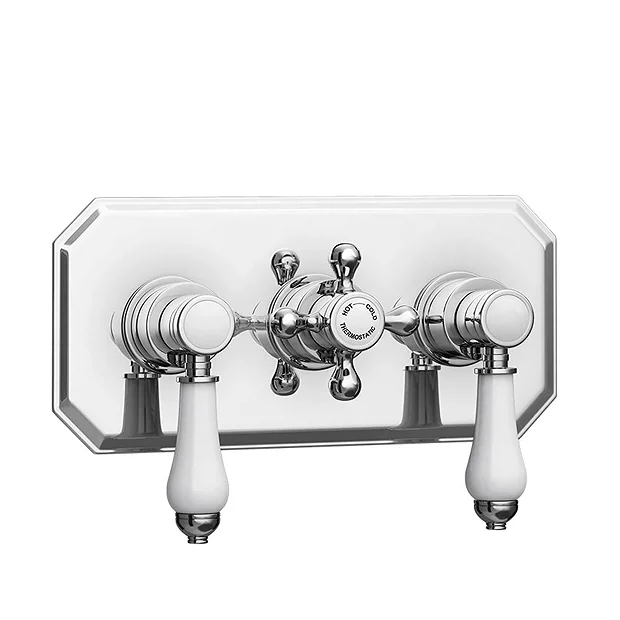

• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.8 L/M
• 1 bar – 11.1 L/M
• 2 bar – 16 L/M
• 3 bar – 19.5 L/M
• 4 bar – 22.8 L/M
• 5 bar – 25.5 L/M

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images are for illustration purposes only

All measurements are approximate

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
